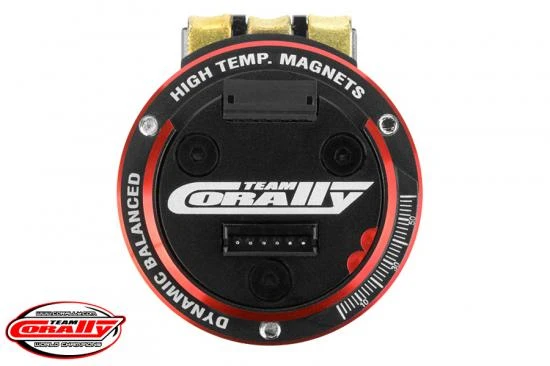

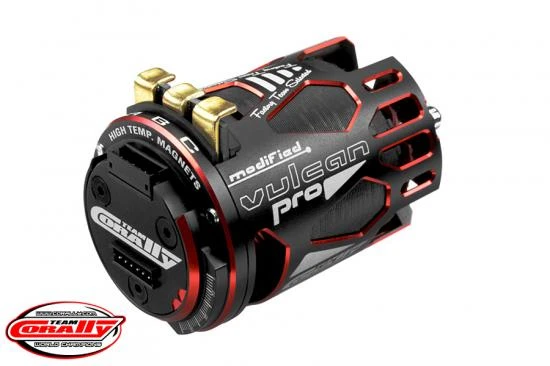

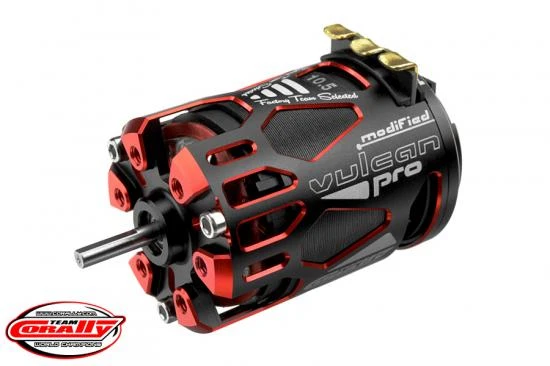

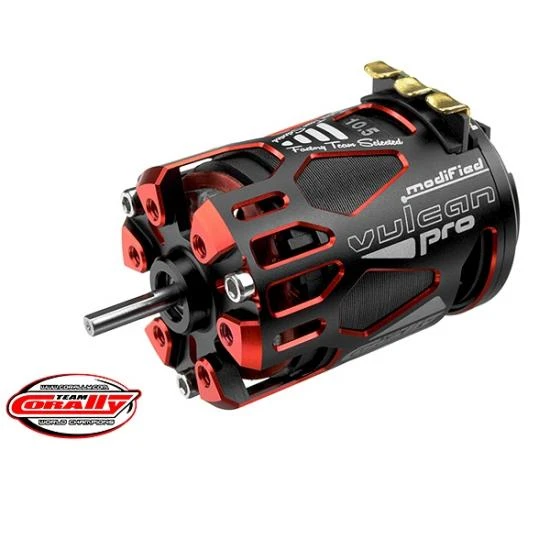

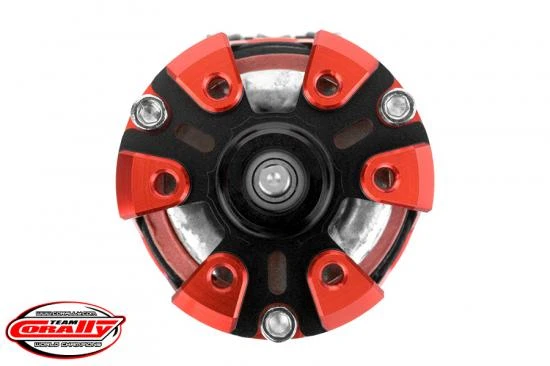

TEAM CORALLY – VULCAN PRO MODI FIED – 1/10 SENSORED COMPETITI

The Team Corally Vulcan Pro modified class brushless motor series is a high performance motor line developed around trend-setting technologies.

We at Team Corally’s R-D department only have highest efficiency and maximum power in mind, when we designed this line of high-performance motors.

The result speaks for itself: impressive performance, more power, more top-end and this all keeping the motor temperature lower. The motors are made with high grade materials and every motor is balanced using state of the art balancing machines.

Features

• Precision machined T6 aluminum motor can
• High purity copper windings maximizes conductivity
• High power solder tabs
• Removable and replaceble rotor
• Powerful sintered Neodymium magnet
• Improved stator design for higher efficiency
• Dual Sensor Port
• Adjustable Timing
• Compatible with all Sensored/ Sensorless ESC
• Compliant with EFRA, IFMAR, ROAR, BRCA, DMC rules

Power Specifications

Poles: 2-Pole
N° of Windings: 10.5T
KV: 3450
N° of Li-xx Cells: 1-3S
Max. Current (A): 65A
No Load Current (A): 1.9A

Technical Specifications

Motor Length: 52.4mm
Motor Diameter: 35.8mm
Motor Shaft: 3.17mm
Sensor Ports: 2 Ports
Adjustable Timing: Yes
Weight: 165g

Spec

• Brand: Corally
• Part No: C-61077
• Barcode: 8718057181314
• Fitment: Standard Part
